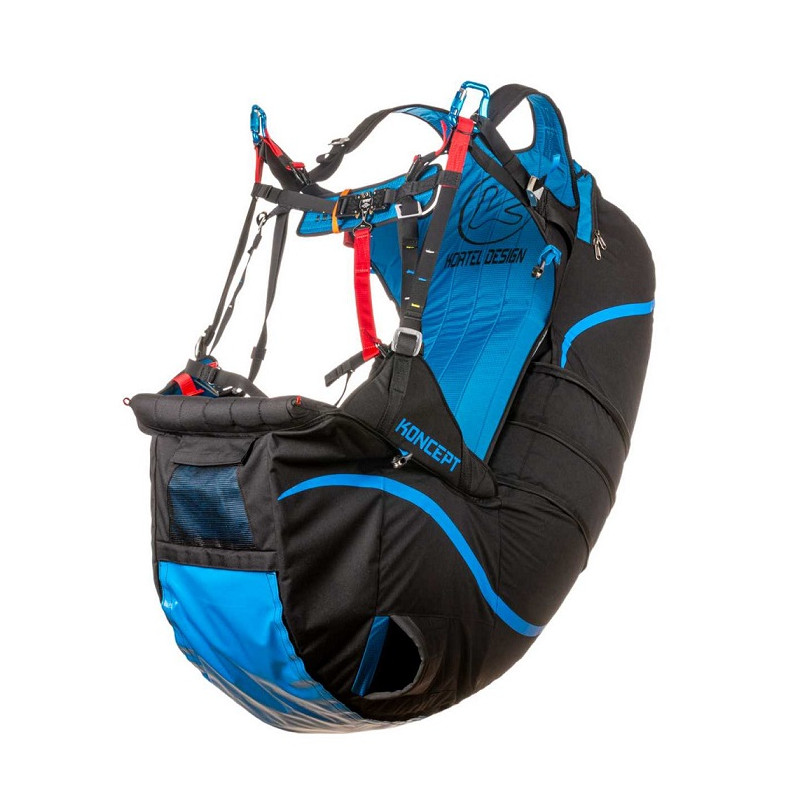

Koncept
Koncept
Reference: Koncept
For more information, click on the link :

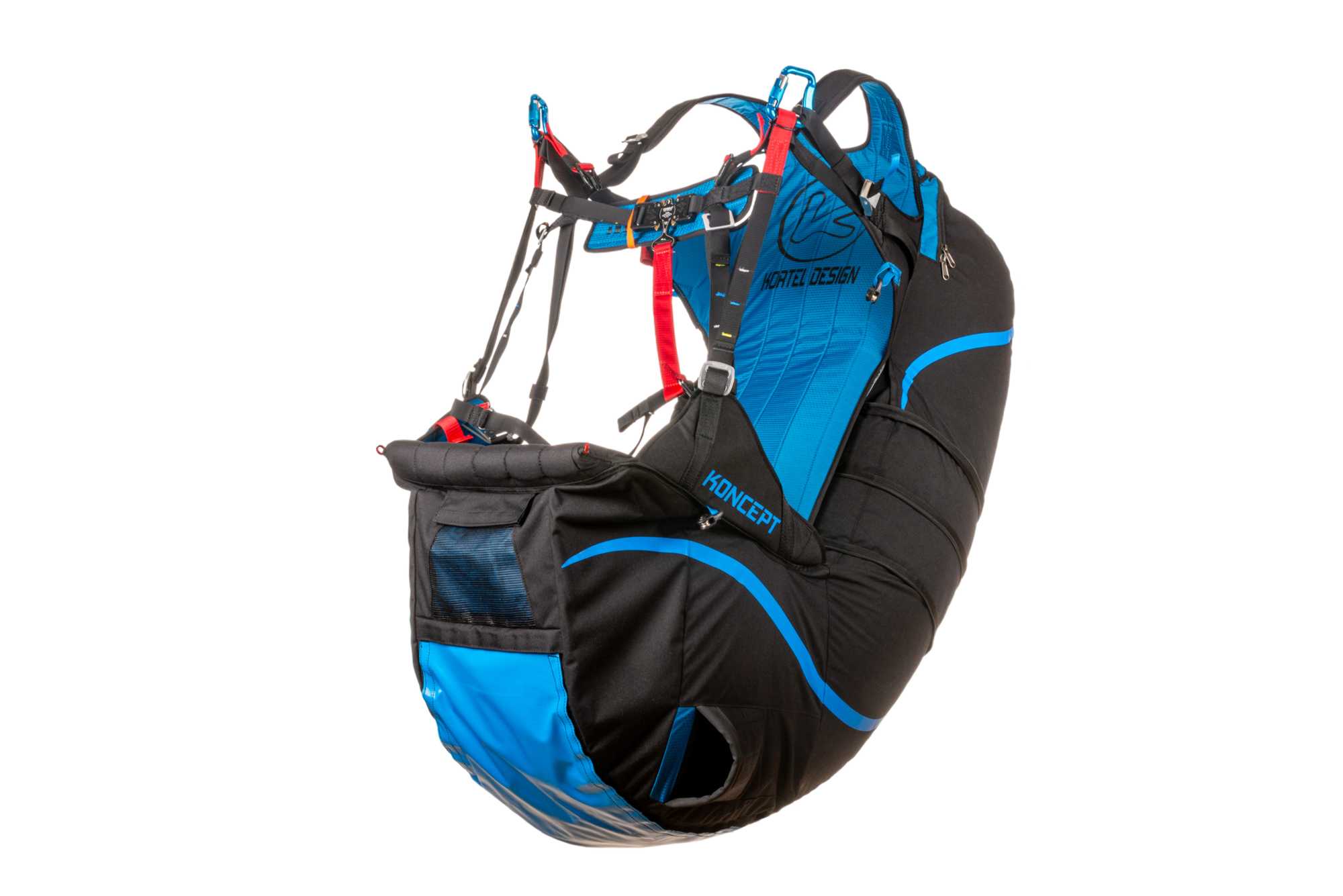

Integral airbag
Airbag adjustable to the size of the harness

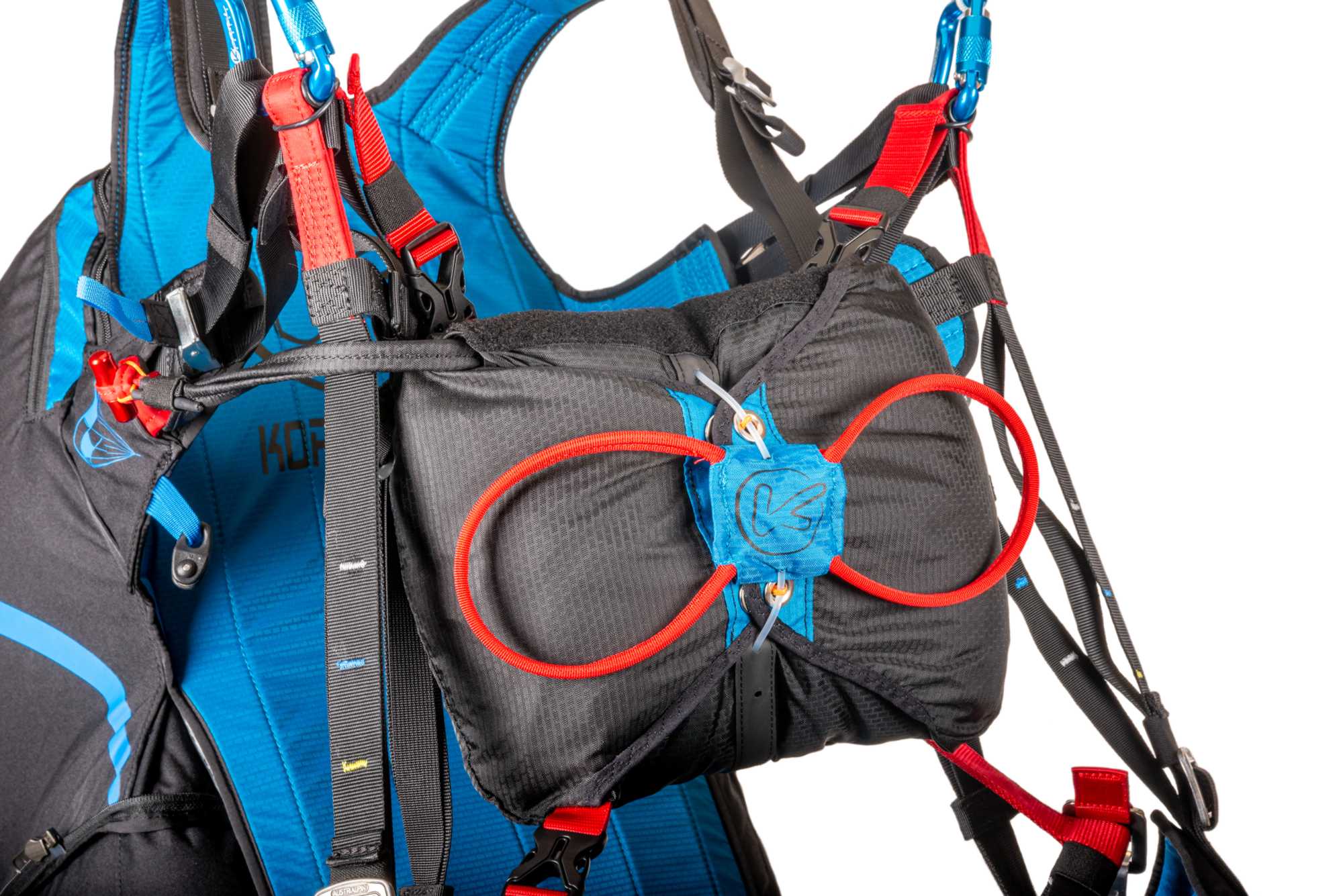

Reserve parachute bag
Removable container. Parachute volume between 2.6L and 4.7L

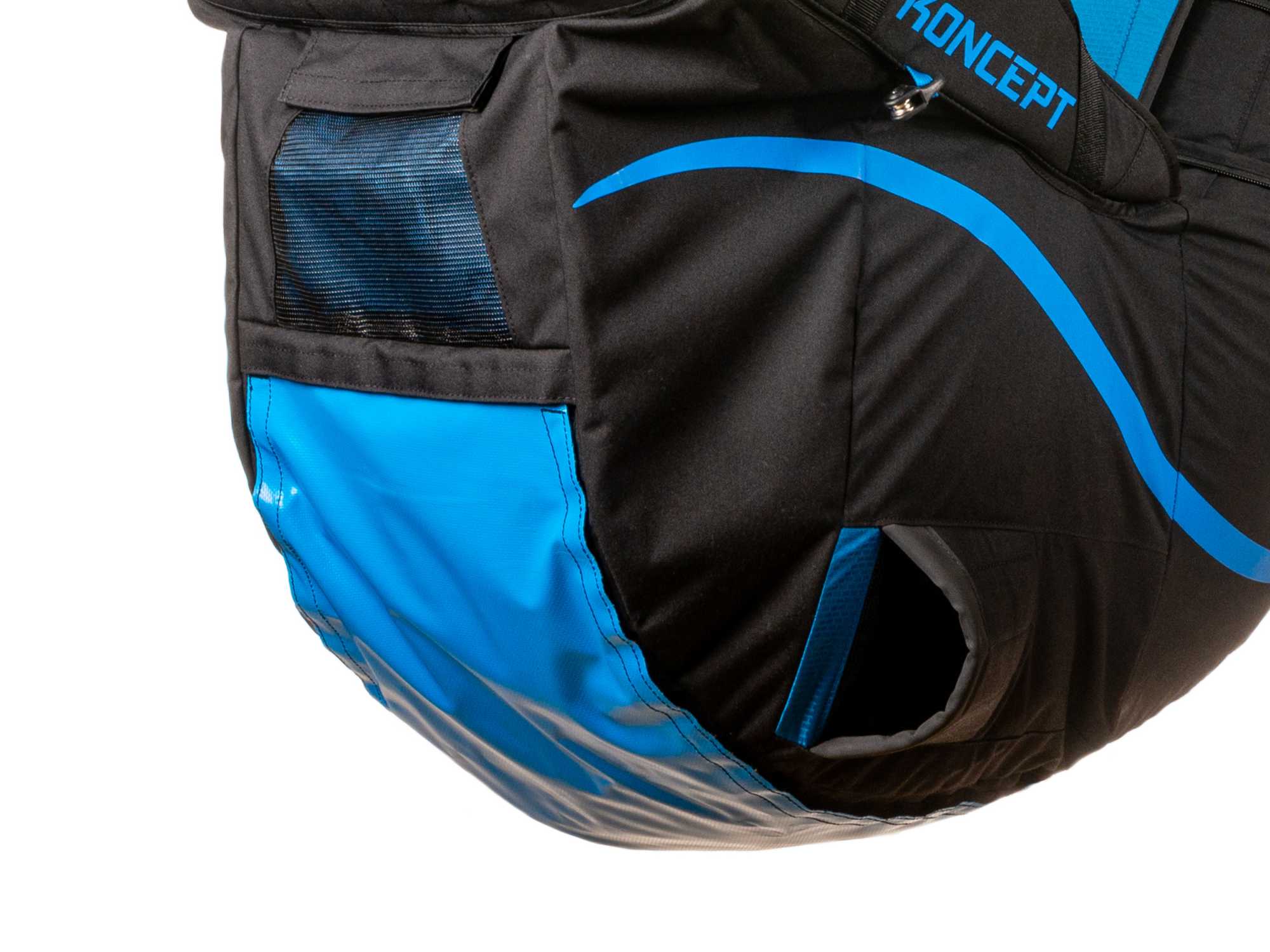

Removable tarp
The protective tarp under your butt is removable for easy maintenance. It's thick enough to protect your harness from rough landings.

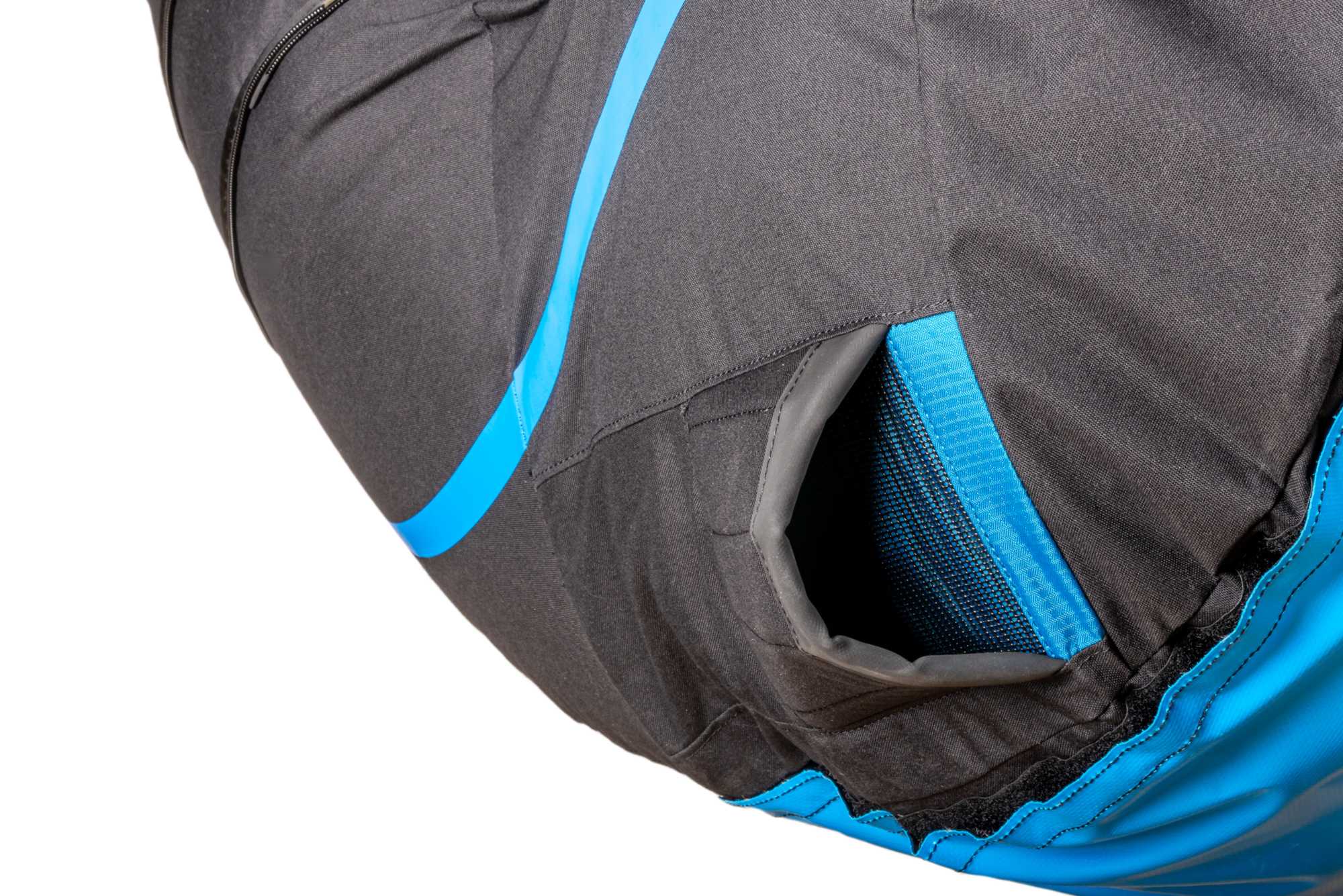

Side air scoops
Together with the front scoop, these ensure an optimum airbag inflation even with crossed legs.

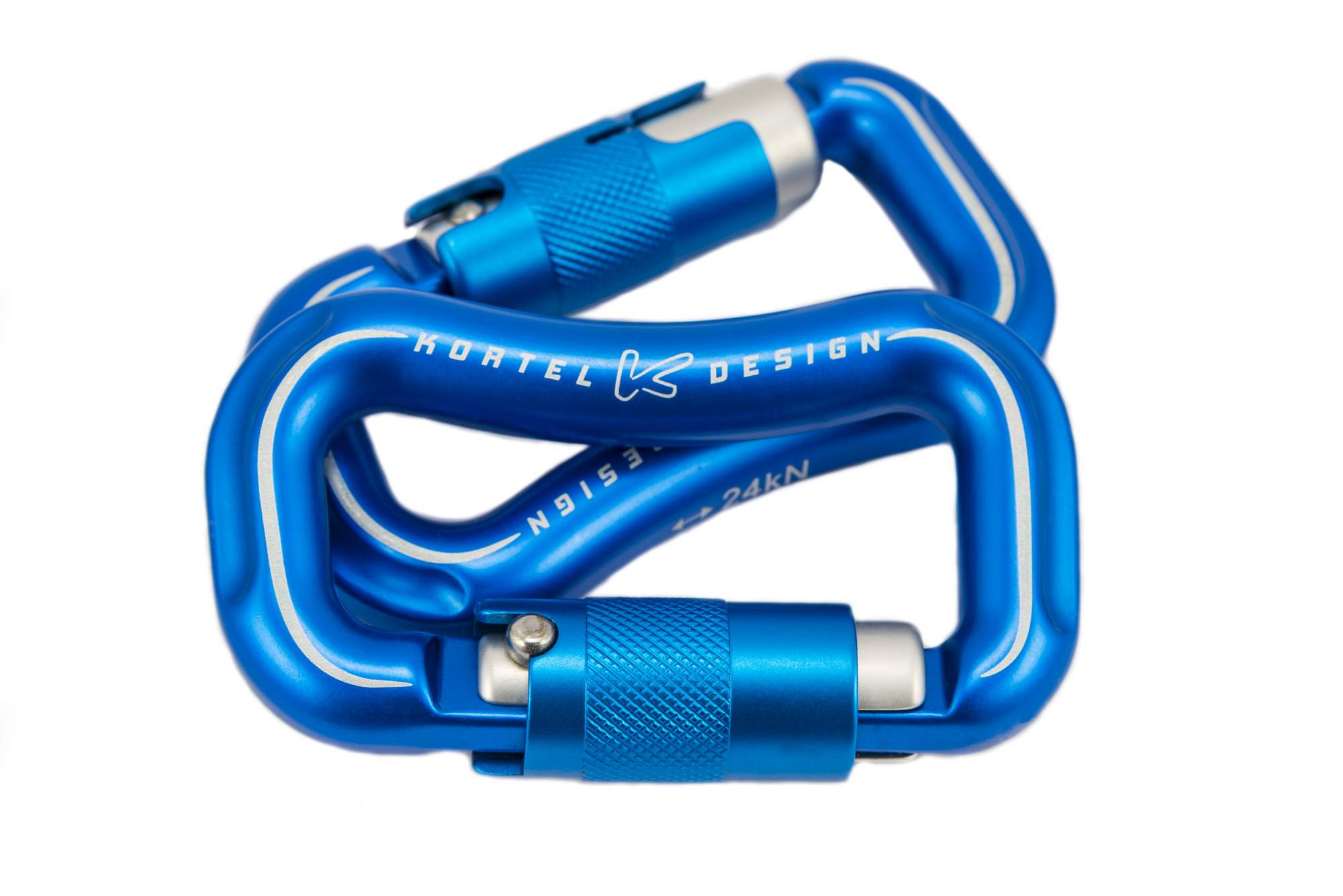

Automatic links
Supplied as standard with 20mm automatic links (and locking joints)

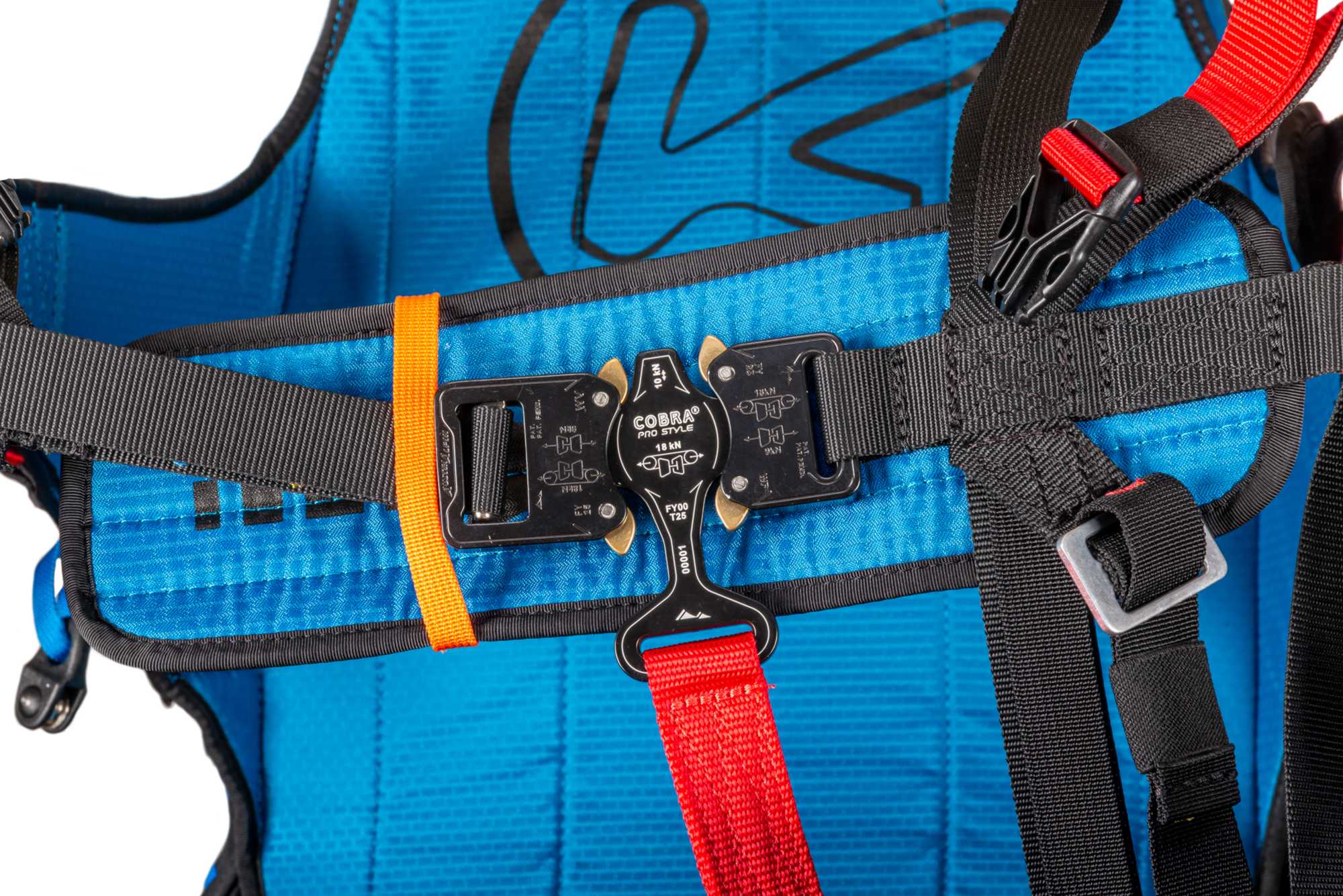

Anti-forgetting belly strap
To avoid forgetting to attach

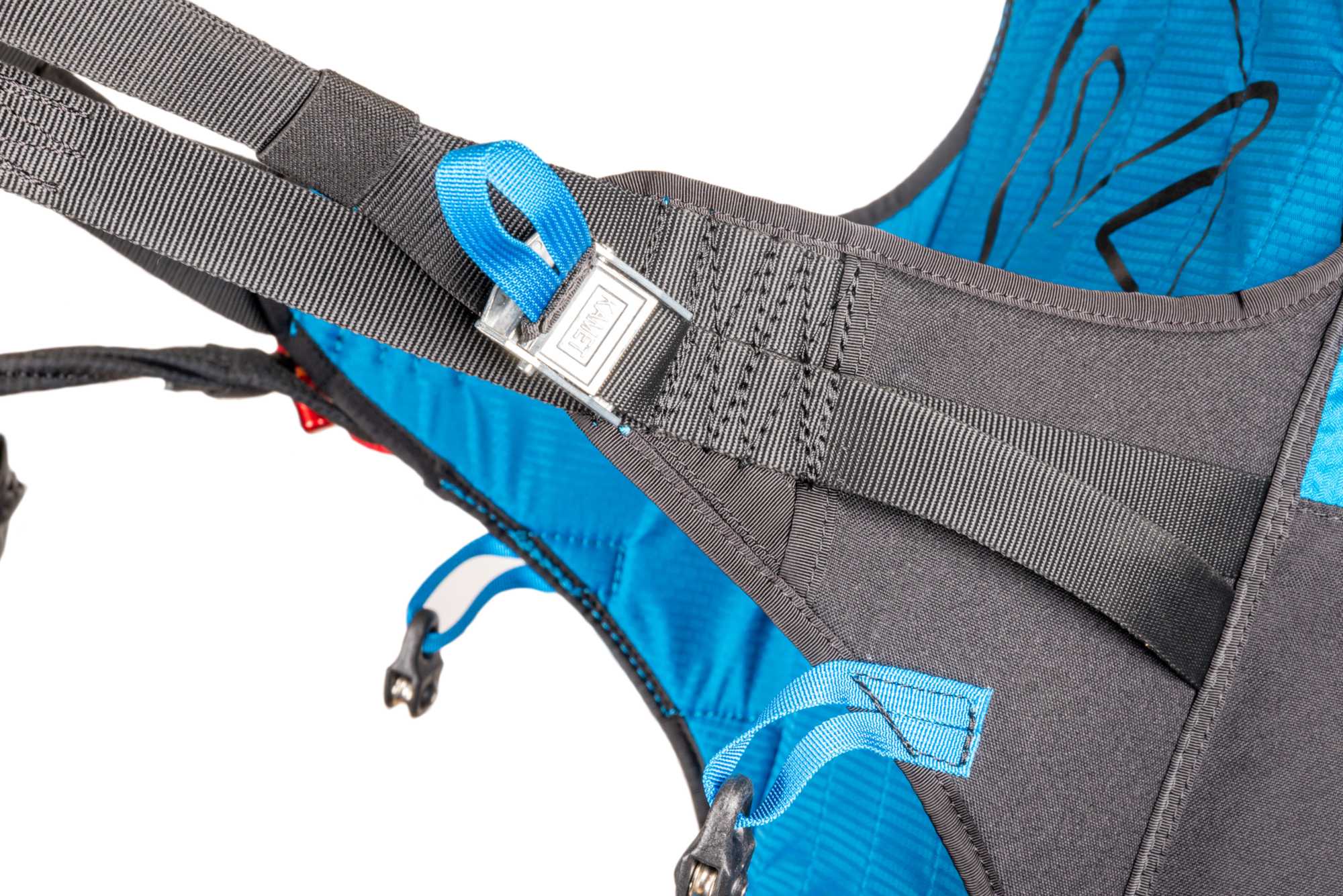

Back adjustment
Adjustment of the pilot's dorsal inclination angle

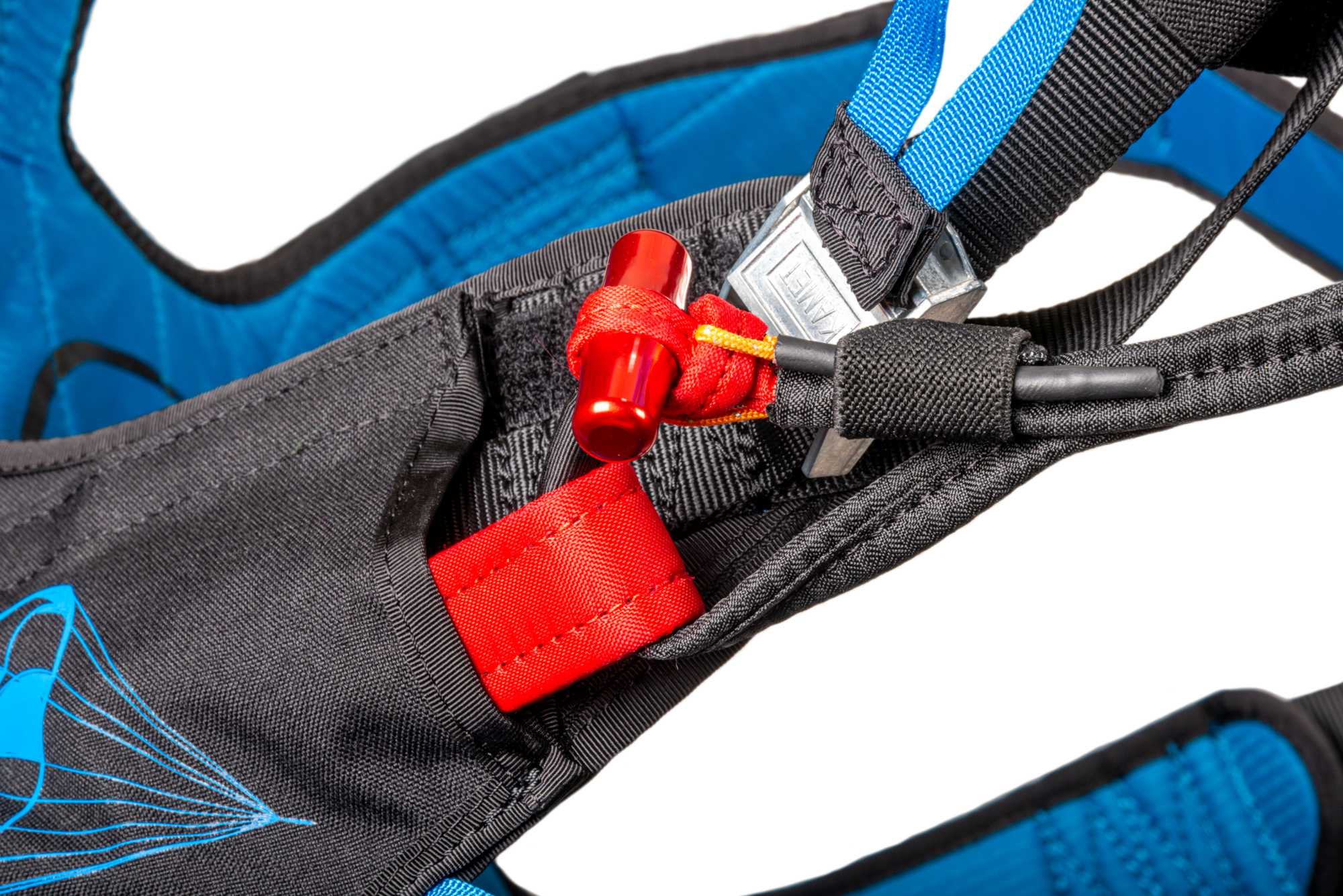

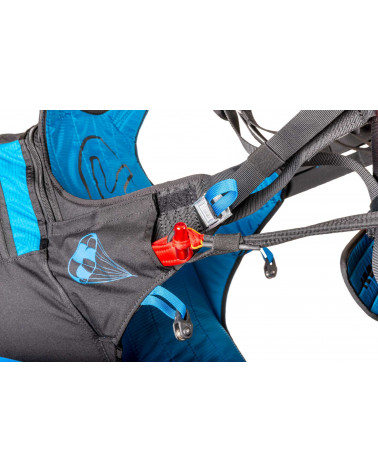

Konnect system
Integrated rescue risers, connected to the rescue parachute using the exclusive Konnect system.

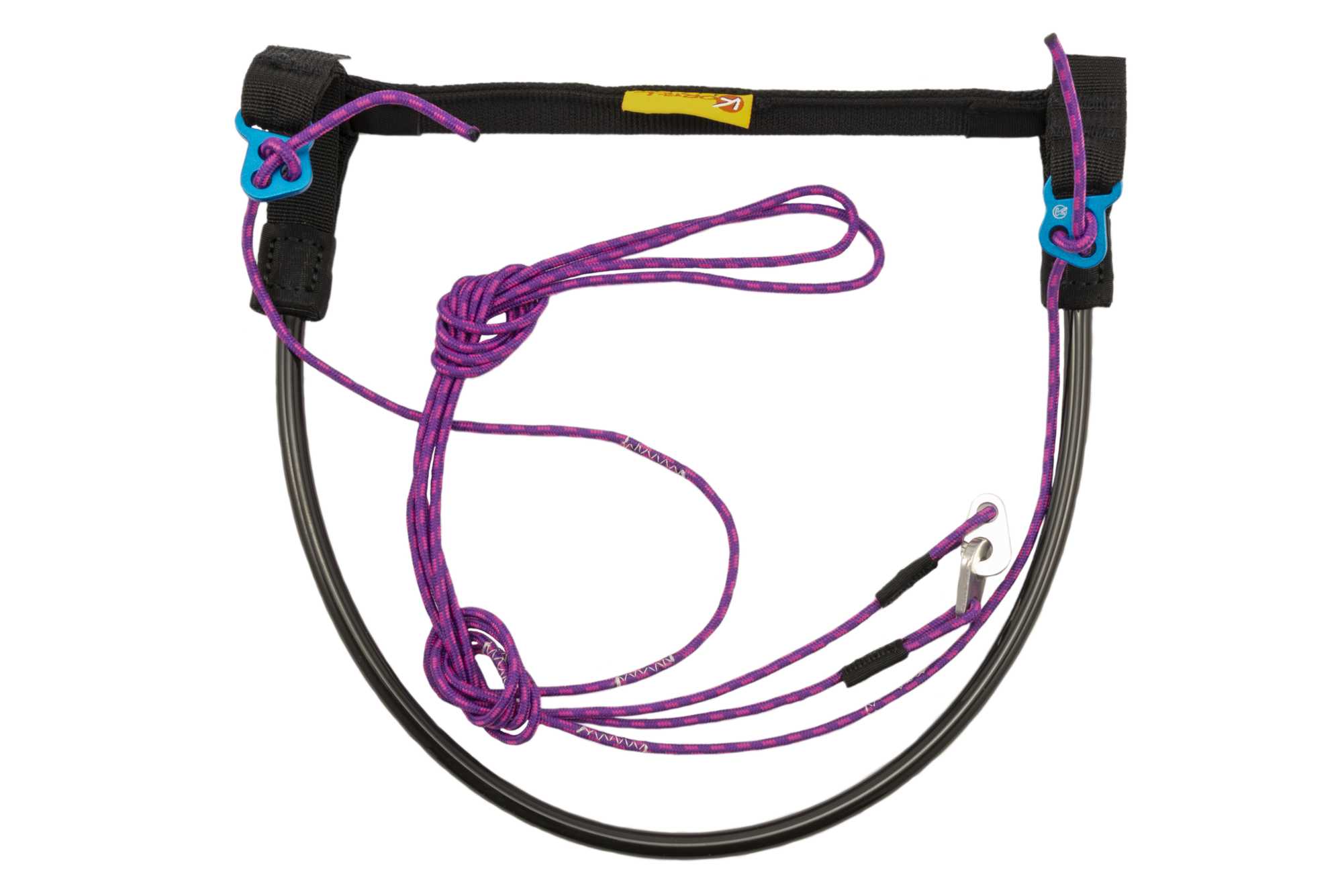

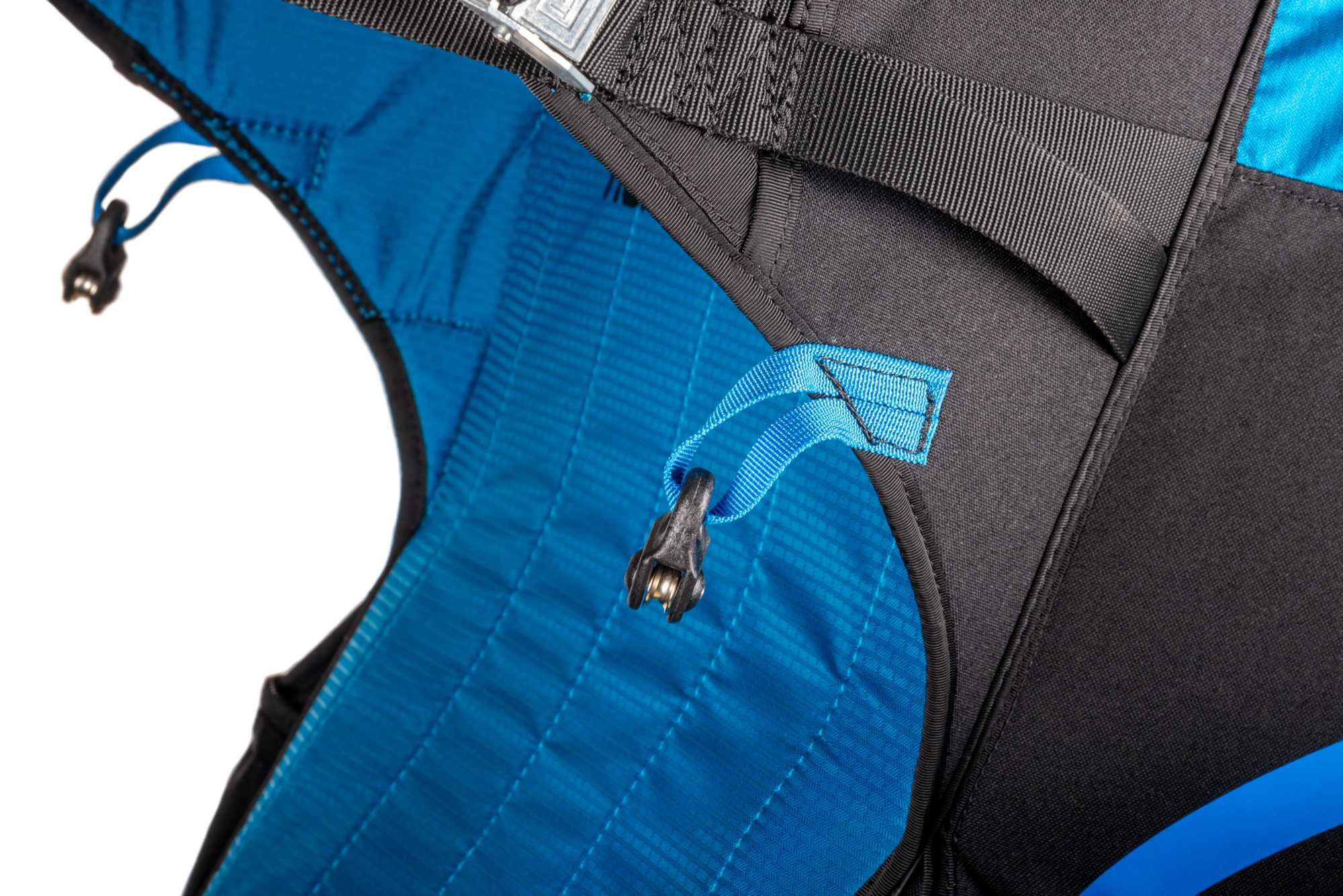

speed bar
Pre-equipped to mount a speedbar

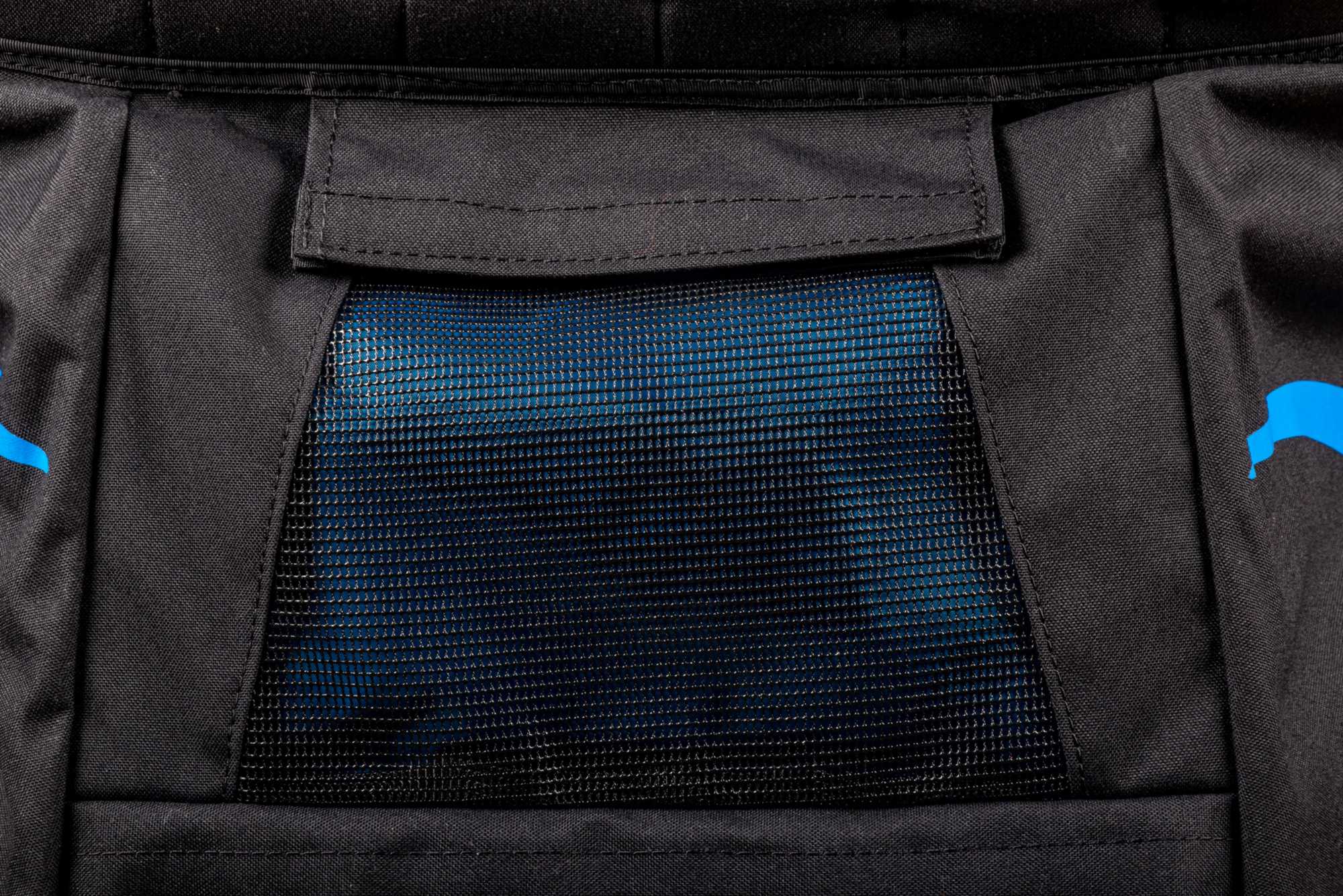

Frontal air scoop
Together with the side scoops, it ensures optimum airbag inflation.

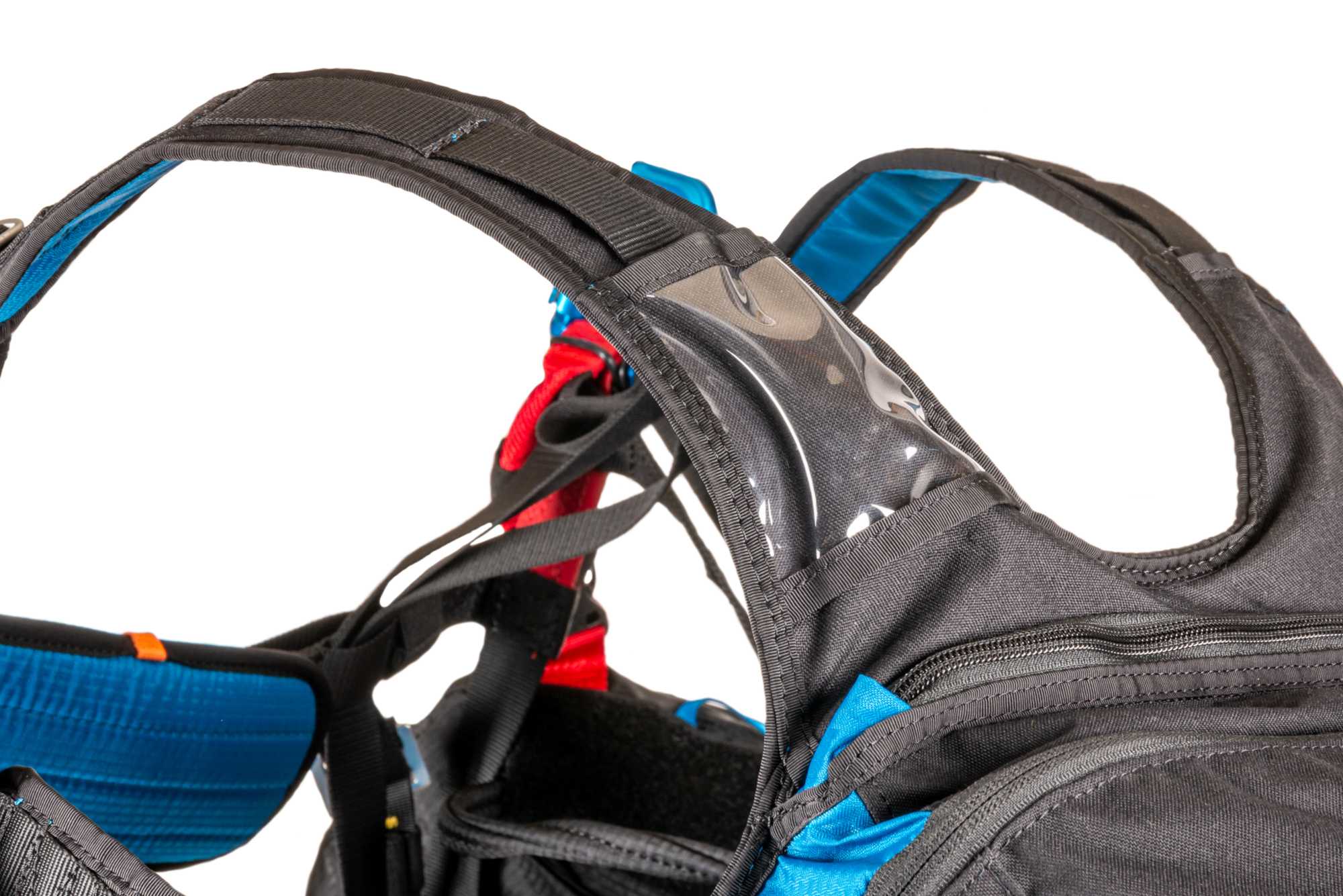

ID pocket
Quick identification of the owner

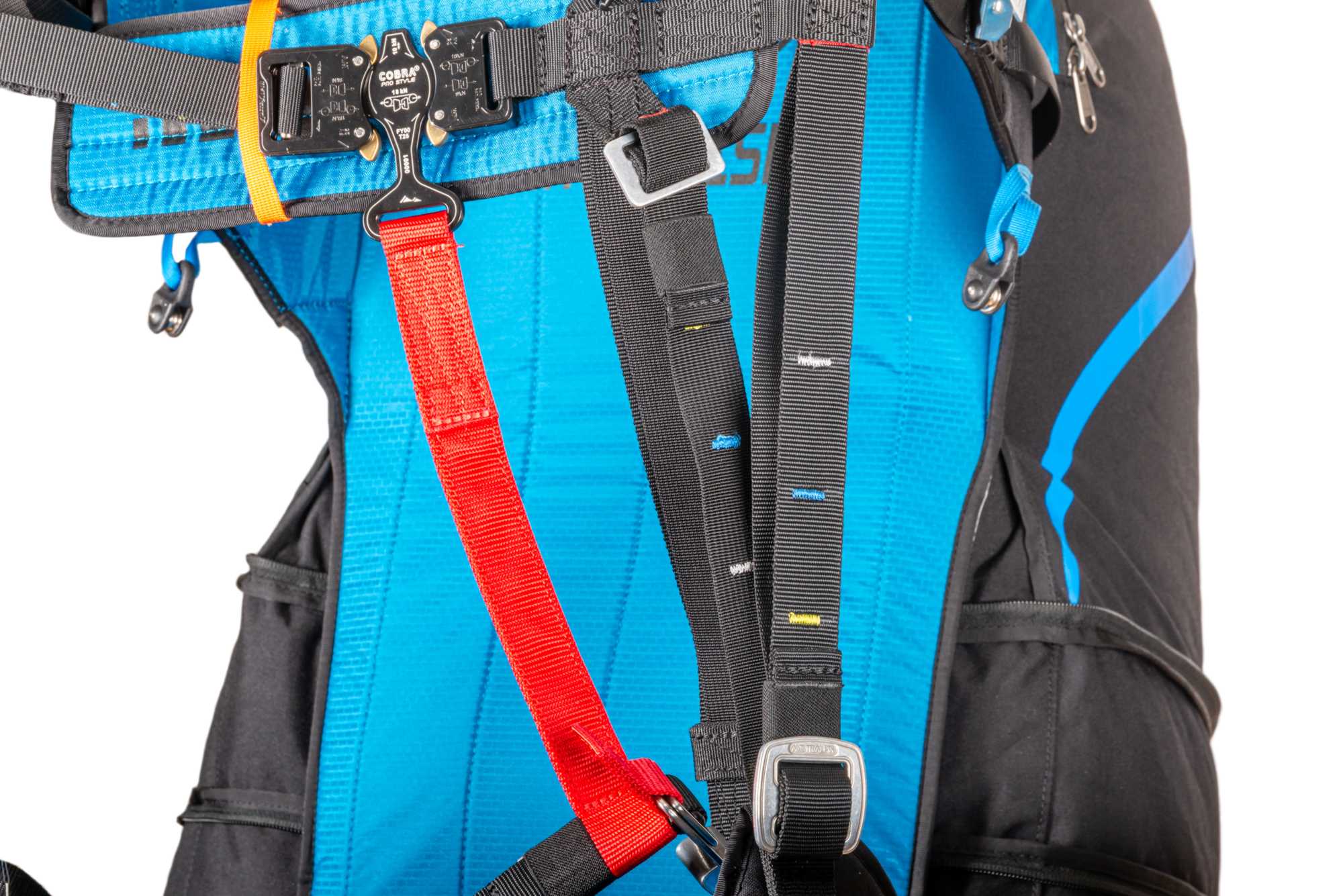

Colour-coded settings
Colour-coded straps for height adjustment of anchor point, stabilization system, and belly strap.
| XS | S | M | L | XL | |
| Weight (kg) | 3.28 | ||||
| Board (g) | 280 | 300 | 360 | 400 | 440 |
| Emergency reserve container (g) | 220 | ||||
| Total weight (kg) | 3.78 | 3.8 | 3.86 | 3.9 | 3.94 |
| Max. weight in flight (kg) | 120 | ||||
| Certification | CE / EN 1651 / 1249 / LTF |
| Pilot size | ||||||||||||
| 150 | 155 | 160 | 165 | 170 | 175 | 180 | 185 | 190 | 195 | 200 | ||
| Pilot weight | 50 | XS | XS | XS | ||||||||
| 55 | XS | XS | XS | S | ||||||||
| 60 | XS | XS | XS | S | S | |||||||
| 65 | XS | XS | S | S | S | M | ||||||
| 70 | XS | S | S | S | M | M | M | |||||
| 75 | S | S | S | M | M | M | M | M | ||||
| 80 | S | M | M | M | M | M | L | L | ||||
| 85 | M | M | M | M | L | L | L | L | ||||
| 90 | M | M | L | L | L | L | L | XL | ||||
| 95 | L | L | L | L | L | XL | XL | |||||
| 100 | L | L | L | XL | XL | XL | ||||||
| 105 | L | XL | XL | XL | XL | |||||||
| 110 | XL | XL | XL | XL |
The Koncept is a unique frame, which can be adjusted to 5 sizes (XS to XL) using a color code and interchangeable seat plates: XS = Grey / S = Blue / M = Green / L = Yellow / XL = Red.
You can adjust the height of the anchoring point, the ABS, the chest strap and the dorsal length.
The lifespan of your harness on how often and how you use it. Mechanical stress and friction gradually degrade its properties. UV rays and humidity can also cause accelerated aging.
Normal service life: 10 years.
Caution: This service life is indicative. A harness be destroyed upon first use. An inspection every 2 years will determine whether the product should be discarded sooner. Proper storage between uses is essential.
The period of use should never exceed 10 years.
Accessories

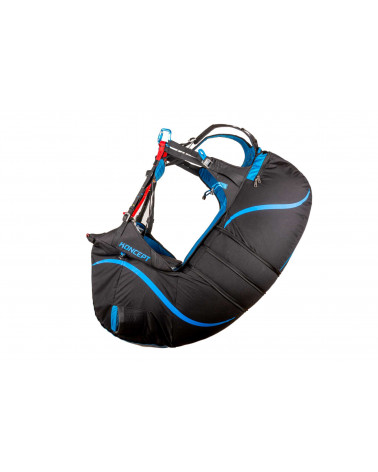

The Koncept the adjustable school harness in sizes XS to XL
